P1.86
Excellent balance of clarity and value. Ideal for meeting rooms and indoor installations.
Indoor Fixed Installation

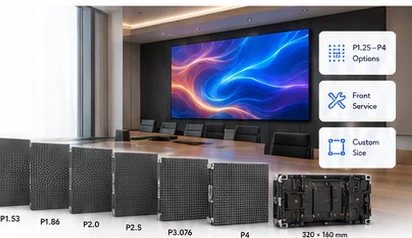

Indoor SMD LED Display Series
Choose the right pixel pitch for meeting rooms, control centers, retail spaces, auditoriums and commercial installations. All models use modular front-service construction and can be configured to your required screen size.
P1.53
Higher detail for closer viewing. Great for premium meeting rooms and control centers.
P2.5
Cost-effective option with clear visuals for standard viewing distances.
Explore All Indoor SMD Models
Indoor P1.25 SMD
- 1.25 mm Pixel Pitch
- 320 x 160 mm Module
- Front Service
- 3840 Hz Option
Indoor P1.53 SMD
- 1.53 mm Pixel Pitch
- 320 x 160 mm Module
- Front Service
- 3840 Hz Option
Indoor P1.86 SMD
- 1.86 mm Pixel Pitch
- 320 x 160 mm Module
- Front Service
- 3840 Hz Option
Indoor P2.0 SMD
- 2.0 mm Pixel Pitch
- 320 x 160 mm Module
- Front Service
- 3840 Hz Option
Indoor P2.5 SMD
- 2.5 mm Pixel Pitch
- 320 x 160 mm Module
- Front Service
- 3840 Hz Option
Indoor P3.076 SMD
- 3.076 mm Pixel Pitch
- 320 x 160 mm Module
- Front Service
- 3840 Hz Option
Indoor P4 SMD
- 4.0 mm Pixel Pitch
- 320 x 160 mm Module
- Front Service
- 3840 Hz Option
Selected for Comparison (3)Indoor P1.53 SMD Indoor P1.86 SMD Indoor P2.5 SMD
Indoor P1.53 SMDIndoor P1.86 SMDIndoor P2.5 SMDCompare Popular SMD Models
| P1.53 | P1.86Recommended | P2.5 | P3.076 | |
|---|---|---|---|---|
| Pixel Pitch | 1.53 mm | 1.86 mm | 2.5 mm | 3.076 mm |
| Typical Viewing Range | 1.5 - 3 m | 1.8 - 4 m | 2.5 - 6 m | 3 - 8 m |
| Module Size | 320 x 160 mm | 320 x 160 mm | 320 x 160 mm | 320 x 160 mm |
| Resolution Density | Highest | High | Standard | Economy |
| Project Budget | Higher | Standard | Lower | Economy |
| Recommended Application | Control centers, premium meeting rooms | Meeting rooms, retail, corporate environments | Standard meeting rooms, classrooms | Large rooms, auditoriums |
One Modular Platform, Multiple Pixel Pitches
LED Module
CabinetPower Supply
Receiving CardVideo ControllerChoose by Application
Meeting Rooms
P1.53 - P2.5
View Solution
Control Centers
P1.25 - P1.86
View Solution
Retail & Showrooms
P1.86 - P3.076
View Solution
Auditoriums
P2.5 - P4
View Solution
Sit closer Choose smaller pitch for higher detailSit farther Larger pitch is more cost-effective
Selection Factors
- Minimum Viewing DistanceThe closer the view, the smaller the pixel pitch should be.
- Screen ResolutionFine-pitch displays deliver higher resolution and clarity.
- Content TypeDetailed content benefits from smaller pixel pitch.
- Project BudgetBalance image quality and total project cost.
Downloads
- SMD Series GuidePDF
- Model ComparisonPDF
- Installation GuidePDF
- Engineering ChecklistPDF
