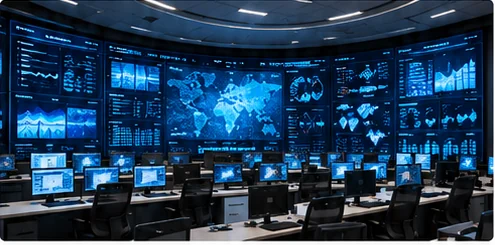

Control Center LED Wall Project
Control CenterIndoor SMDP1.53Front Service16:9
Project Requirements
Selected Product
- Indoor P1.53 SMD LED Display
- Pixel Pitch: P1.53 mm
- LED Type: SMD 1010
- Brightness: >= 600 cd/m²
- Refresh Rate: >= 3840 Hz
- Viewing Angle: 160° / 160°
- Service Access: Front Service
Engineering Configuration
| Actual Screen Size | 10.24 m x 3.28 m |
|---|---|
| Resolution | 6720 x 2160 (14,515,200 px) |
| Module Quantity | 240 pcs (320 x 240 mm) |
| Cabinet Quantity | 32 pcs (640 x 480 mm) |
| Power Load | Max 6.2 kW / Avg 2.1 kW |
| Receiving Cards | 32 pcs (1 per cabinet) |
| Controller Capacity | 16.7 M pixels |
Control System Topology
Power Supply
Receiving CardVideo Controller
Complete LED WallProject BOM
| LED Modules | Project specification | Calculated |
|---|---|---|
| Cabinets | Project specification | Calculated |
| Power Supplies | Project specification | Calculated |
| Receiving Cards | Project specification | Calculated |
| Video Controller | Project specification | Calculated |
| Cables & Accessories | Project specification | Calculated |
Installation Gallery
Site Preparation
Cabinet Installation
Module Installation
Final Display
