Indoor Fixed Installation

Indoor P1.86 SMD LED Display

A front-service fine-pitch LED display solution for meeting rooms, control centers, retail spaces and commercial installations.

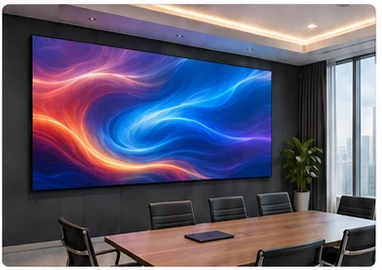

Installed View
1.86 mm Pixel Pitch320 x 160 mm Module3840 Hz OptionFront ServiceCustom Screen SizeIndoor Application
Configuration Type
Refresh Rate
Control System
Configure Full ScreenDownload Datasheet

Final specifications depend on the confirmed module and project configuration.

Configure Your P1.86 LED Display

Recommended Configuration

Recommended Configuration
  • Actual Screen Size: 5120 x 2880 mm
  • Resolution: 2752 x 1548 px
  • Module Layout: 16 x 18
  • Total Modules: 288 pcs
  • Receiving Cards: Calculated by load
Add to Project BOM

What Is Included in the Display System?

LED ModuleLED Module
CabinetCabinet
Power SupplyPower Supply
Receiving CardReceiving Card
Video ControllerVideo Controller
Complete LED WallComplete LED Wall

Technical Specifications

Pixel Pitch1.86 mmRefresh RateStandard / 3840 Hz
Module Size320 x 160 mmBrightnessProject specification
Module Resolution172 x 86 pxInput Voltage110 V / 220-240 V
LED TypeSMDPower ConsumptionCalculated by screen size

Compare Indoor SMD Models

P1.531.5 - 3 m4160 × 2340Higher
P1.861.8 - 4 m2752 × 1548Standard
P2.52.5 - 6 m2048 × 1152Lower
P3.0763 - 8 m1664 × 936Economy
Compare All Indoor Models

Recommended Applications

Designed for Front-Service Installation

Designed for Front-Service Installation
No rear service aisle
Modular replacement
Simplified maintenance

Downloads & Project Resources

Fine Pitch GuidePDFModel ComparisonXLSXInstallation GuidePDFEngineering ChecklistPDF
